In the world of HVAC (Heating, Ventilation, and Air Conditioning) systems, efficiency and airflow management are crucial for maintaining optimal indoor environments. One innovative solution that addresses these needs is the bifurcated fan. This specialised fan design offers unique advantages in various HVAC applications, providing enhanced performance and flexibility. Let’s delve into the concept of bifurcated fans and uncover their significance in modern air handling technology.
Understanding Bifurcated Fans:

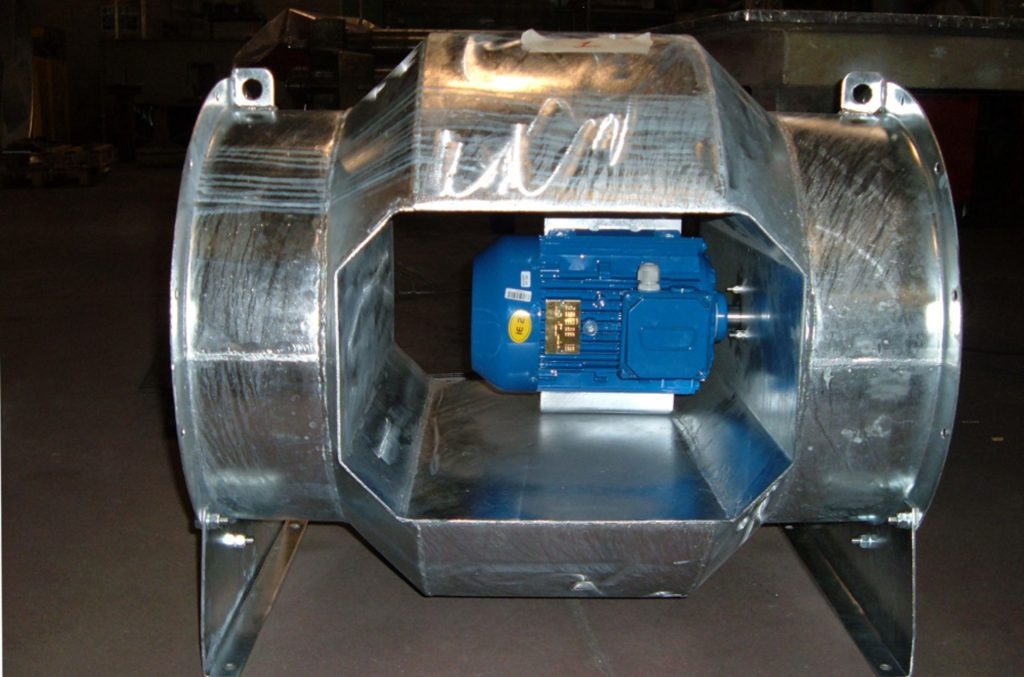

A bifurcated fan, also known as a split-case fan or double-suction fan, is a type of centrifugal fan characterised by its distinctive design. Unlike traditional centrifugal fans, which draw air in from one side (single suction), bifurcated fans feature a split casing that allows air to be drawn in from both sides simultaneously (double suction). This dual-entry configuration results in more uniform airflow distribution and higher efficiency compared to single-entry fans.
How Bifurcated Fans Work:
The operation of a bifurcated fan is similar to that of a conventional centrifugal fan, with some notable differences. In a bifurcated fan, air is drawn into the fan housing from two opposite directions through separate inlet channels. This dual-entry configuration enables the fan to efficiently capture and process a larger volume of air, resulting in improved airflow performance and reduced energy consumption.
As the air enters the fan housing, it is accelerated by the rotating impeller blades, creating a high-velocity airflow. The air is then directed radially outward by the centrifugal force generated by the impeller, before being discharged through the fan outlet. The unique design of bifurcated fans allows for smoother airflow and higher static pressure capabilities, making them ideal for a wide range of HVAC applications.
Applications of Bifurcated Fans:
Bifurcated fans find applications in various HVAC systems and environments, including:
1. Air Handling Units (AHUs): Bifurcated fans are commonly used in AHUs to facilitate the circulation of air and maintain indoor comfort levels in commercial buildings, industrial facilities, and residential complexes.
2. Industrial Ventilation: In industrial settings such as manufacturing plants, warehouses, and processing facilities, bifurcated fans are utilised for exhaust ventilation, dust collection, and air purification purposes.
3. Data centres: Bifurcated fans play a critical role in cooling systems for data centres, where precise temperature control and efficient airflow management are essential to protect sensitive equipment and ensure uninterrupted operation.
4. HVAC Retrofit Projects: Bifurcated fans are also employed in retrofit projects aimed at upgrading existing HVAC systems to improve energy efficiency and airflow performance.
Advantages of Bifurcated Fans:
1. Improved Airflow Efficiency: The dual-entry configuration of bifurcated fans allows for more uniform airflow distribution and enhanced static pressure capabilities, resulting in improved system performance and energy efficiency.
2. Reduced Noise Levels: Bifurcated fans typically operate at lower noise levels compared to single-entry fans, thanks to their balanced airflow design and reduced turbulence.
3. Space-Saving Design: Bifurcated fans are often more compact than traditional centrifugal fans, making them suitable for installations where space is limited or where retrofitting is required.
4. Enhanced Reliability: The robust construction and balanced operation of bifurcated fans contribute to their long-term reliability and durability, minimising downtime and maintenance costs.
Conclusion:
In conclusion, bifurcated fans represent a significant advancement in centrifugal fan technology, offering improved airflow efficiency, reduced noise levels, and enhanced reliability compared to traditional single-entry fans. Their versatile design makes them well-suited for a wide range of HVAC applications, from air handling units to industrial ventilation systems and data centre cooling solutions. By leveraging the benefits of bifurcated fans, HVAC engineers and facility managers can optimise airflow performance, improve energy efficiency, and create comfortable and healthy indoor environments for occupants.
