GR50I-ZID.GQ.CR (116906/A01) – Ziehl-Abegg

GR50I-ZID.GQ.CR (116906/A01) - Ziehl Abegg

The Ziehl-Abegg GR50I-ZID.GQ.CR (116906/A01) is a premium EC centrifugal plug fan designed for efficient and reliable ventilation. Its 500 mm backward-curved ZAmid composite impeller is driven by a high-efficiency IE5 ECblue motor with integrated controller, so this single-intake unit delivers optimal airflow with minimal energy consumption.

• Voltage: 3~380-480V, 50/60Hz
• Power Consumption: 8 kW at 2,180 rpm
• Integrated Controller: Built-in ECblue BASIC controller with MODBUS-RTU (RS-485) and 0–10 V / 4–20 mA / PWM input for precise speed regulation and easy BMS integration
• Motor Efficiency: IE5 ECblue motor, exceeding ErP 2015 efficiency requirements
• Backward-Curved Blades: Lightweight ZAmid composite impeller for improved efficiency and reduced noise levels
• Airflow Measurement: Inlet nozzle with built-in volume flow measuring device (K-factor 280)
• Protection: IP55 rated, with integrated active temperature management and moisture and hot climate protection

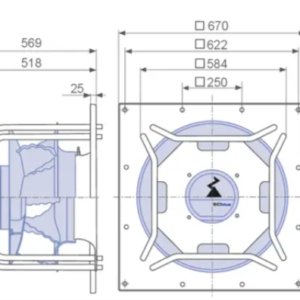

• Dimensions: (w x h x d) mm 670 x 670 x 571
• Specification Sheet: click here

Ideal for HVAC applications, this plug fan delivers superior airflow, energy efficiency, and durability. To find out more about EC fan installations, click here.
